BIOMASS WATER-BASED WOOD COATINGS

PA WOOD COATING
WATER-BASED WOOD COATING
UV COATING
WATER-BASED WOOD COATING ON RATTAN
ADDITIVES & PIGMENTS
Biomass Pa Coatings System
sơn gỗ gốc nước cao cấp thương hiệu biomass

GENERAL CHARACTERISTIC OF WATER-BASED WOOD COATING PA SYSTEM.

  • NOT contain harmful volatile organic compounds, making it very safe for health.
  • High solid content, low VOC emissions, is environmentally friendly, and does not contain carcinogens.
  • A newer, safer technology that replaces PU wood paints, using water as the solvent.
sơn gỗ gốc nước cao cấp thương hiệu biomass

ADVANTAGES OF PA WATER-BASED WOOD COATINGS

  • Does not discolor over time.
  • High hardness.
  • Quick drying time.
  • High thickness and surface coverage.
  • Good Coverage
sơn gỗ gốc nước cao cấp thương hiệu biomass

FUNCTION OF WATER-BASED WOOD COATING PA SYSTEM.

  • Can apply on diversity materials such as wood, concrete, metal.
  • Apply for Wood Interiors and Exteriors.
  • Can be used for products requiring high durability, hardness, thickness. Equivalent performance and effects to oil-based PU paint.

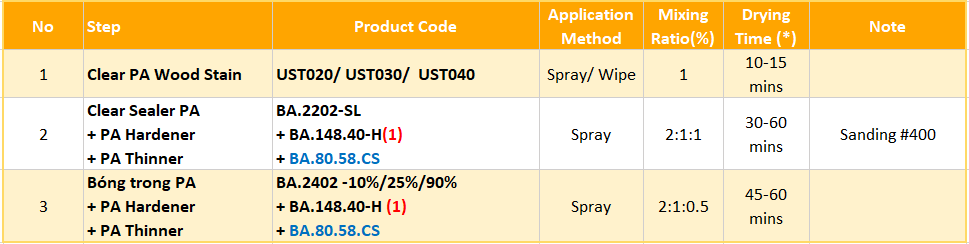

PA COATING PROCEDURES

PA Hardener (The mixture with hardener must be used within 4 hours after mixing)

sơn lau trong nhà hệ PA dễ sử dụng
Add to wishlist

PA WOOD COATING

PA Interior Wood Stain UST020 – Walnut

sơn lau trong nhà hệ PA dễ sử dụng
Add to wishlist

PA WOOD COATING

PA Interior Wood Stain UST030 – Dark Mahogany

sơn lau trong nhà hệ PA dễ sử dụng
Add to wishlist

PA WOOD COATING

PA Interior Wood Stain UST040 – Light Mahogany

Sơn gỗ gốc nước hệ PA Biomass
Add to wishlist

PA SEALER

Clear Sealer PA BA.2202-SL

Biomass - PA Coatings' Solvent
Add to wishlist

PA HARDENER

Hardener PA BA148.40-H

Biomass - PA Coatings' Solvent
Add to wishlist

PA REDUCER

PA Reducer BA.80.58-CS

Premium PA Procedures on natural wood have deep wood grain (Tali, Ash, Rosewood, Oak)

NO COATING PROCEDURES PRODUCT CODE APPLICATION METHOD INSTRUCTION MIXING RATIO(%) DRYING TIME AT 27 – 37° C, AIR HUMIDITY < 70% NOTE
1 PA Filler Sealer (wipe) BA2105-FL Wipe PA Sealer + PA Premium Hardener (BA.148.40-H) + PA Reducer (BA.80.58-CS) (4 : 1 : 1) 60 – 90 mins Sanding #320
2 PA Premium Clear  Sealer BA2202-SL Spray PA Sealer + PA Premium Hardener (BA.148.40-H) + PA Reducer (BA.80.58-CS) (2 : 1 : 1) 60 – 90 mins Sanding #400
3 PA Premium Clear  Sealer BA2202-SL Spray PA Sealer + PA Premium Hardener (BA.148.40-H) + PA Reducer (BA.80.58-CS) (2 : 1 : 1) 60 – 90 mins Sanding #600
4 Pigment Mixing based on sample Spray Using Original 100% 10 mins
5 PA Clear Satin – Gloss 50 – 90 BA2402 (5 – 50%) Spray Clear Satin + WB Hardener BW148.41-H (148.H-46041) + Clean water* (2:1:0.5) 60 – 90 mins Use #1800 mesh to filter before using

Note:
– Using socks mesh ( with sealer layers ) and #1800 mesh ( with topcoat) for filtering before using.
* Clean water used to dilute the coating in step 5 should be potable or deionized water.

Results: Grain filling capability : 90 – 100%    Hardener: High   Transparency: High

Mix procedure with PA coatings and water-based wood coating on natural wood have deep wood grain sơn PA (Tali, Ash, Rosewood, Oak)

NO COATING PROCEDURES PRODUCT CODE APPLICATION METHOD INSTRUCTION MIXING RATIO(%) DRYING TIME AT 27 – 37° C, AIR HUMIDITY < 70% NOTE
1 PA Filler Sealer (Wipe) BA2105-FL Wipe PA Sealer + PA Premium Hardener (BA.148.40-H) + PA Reducer (BA.80.58-CS) (4:1:1) 60 – 90 mins Sanding #320
2 WB 2K Clear Sealer W1106 Spray WB Clear Sealer + WB Hardener BW148.41-H (148.H-46041) + Clean water* 100 : 8 : 5 (%) 90 mins Sanding #400
3 WB 2K Clear Sealer W1106 Spray WB Clear Sealer + WB Hardener BW148.41-H (148.H-46041) + Clean water* 100 : 8 : 5 (%) 90 mins Sanding #600
4 Pigment Based on sample Spray Using original 100% 10 mins
5 WB 2K Clear Satin – Gloss 50 – 90 W1007 (10-50%) Spray Clear Satin + WB Hardener BW148.41-H (148.H-46041) + Clean water* 100 : 12 : 5 90 mins Use #1800 mesh to filter before using

Note:
– Using socks mesh ( with sealer layers ) and #1800 mesh ( with topcoat) for filtering before using.
* Clean water used to dilute the coating in step 2,3,5 should be potable or deionized water.

Results: Grain filling capability : 70 – 80%     Hardener: Medium    Transparency: Medium

Premium PA Coating Process for Low-Porosity Woods (Padauk, Walnut, Chinaberry)

NO COATING PROCEDURES PRODUCT CODE APPLICATION METHOD INSTRUCTION MIXING RATIO(%) DRYING TIME AT 27 – 37° C, AIR HUMIDITY < 70% NOTE
1 Wiping Pigment Based on sample Spray + Wipe Using original 100% 10 mins
2 PA Premium Clear  Sealer BA2202-SL Spray PA Sealer + PA Premium Hardener (BA.148.40-H) + PA Reducer (BA.80.58-CS) (2:1:1) 60 – 90 mins Sanding #400
3 PA Premium Clear  Sealer BA2202-SL Spray PA Sealer + PA Premium Hardener (BA.148.40-H) + PA Reducer (BA.80.58-CS) (2:1:1) 60 – 90 mins Sanding #600
4 Pigment Pha theo mẫu Spray Using original 100% 10 mins
5 PA Clear Satin – Gloss 50 – 90 BA2402 (5-50%) Spray PA Clear Satin + PA Premium Hardener (BA.148.40-H) + PA Reducer (BA.80.58-CS) (2:1:0.5) 90 mins Use #1800 mesh to filter before using

Note:
– Using socks mesh ( with sealer layers ) and #1800 mesh ( with topcoat) for filtering before using.

Results: Grain filling capability: 100%    Hardener: High   Transparency: High

Hybrid PA and Water-Based Coating Process for Deep-Pored Natural Wood (Ironwood, Ash, Rosewood, Oak)

NO COATING PROCEDURES PRODUCT CODE APPLICATION METHOD INSTRUCTION MIXING RATIO(%) DRYING TIME AT 27 – 37° C, AIR HUMIDITY < 70% NOTE
1 PA Filler Sealer BA2105-FL Wipe PA Sealer + PA Premium Hardener (BA.148.40-H) + PA Reducer (BA.80.58-CS) (4:1:1) 60 – 90 mins Sanding #320
2  2K WB Clear Sealer W1106 Spray WB Clear Sealer + WB Hardener BW148.41-H (148.H-46041) + Clean water* 100 : 8 : 5 (%) 90 mins Sanding #400
3 Pigment Based on sample Spray Using original 100% 10 mins
4 WB Clear Satin – Gloss 50 – 90 W1007 (10-90%) Spray WB Clear Satin + WB Hardener BW148.41-H (148.H-46041) + Clean water* 100 : 12 : 5 (%) 90 mins Use #1800 mesh to filter before using

Note:
– Using socks mesh ( with sealer layers ) and #1800 mesh ( with topcoat) for filtering before using.
* Clean water used to dilute the coating in step 2,4 should be potable or deionized water.

Results: Grain filling capability: 70 – 80%     Hardener: Medium    Transparency: Medium

NO COATING PROCEDURES PRODUCT CODE APPLICATION METHOD INSTRUCTION MIXING RATIO(%) DRYING TIME AT 27 – 37° C, AIR HUMIDITY < 70% NOTE
1 Wipping pigment Based on sample Spray + Wipe Using original 100% 10 mins
2 PA Premium Clear Sealer BA2202-SL Spray PA Sealer + PA Premium Hardener (BA.148.40-H) + PA Reducer (BA.80.58-CS) (2:1:1) 60 – 90 mins Sanding #400
3 Sơn lót trong PA cao cấp BA2202-SL Spray PA Sealer + PA Premium Hardener (BA.148.40-H) + PA Reducer (BA.80.58-CS) (2:1:1) 60 – 90 mins Sanding #400
4 Pha theo yêu cầu Spray Using original 100% 10 mins
5 Sơn bóng trong PA – Gloss 50 – 90 BA2402 – (5-50%) Spray PA Clear Satin + PA Premium Hardener (BA.148.40-H) + PA Reducer (BA.80.58-CS) (2:1:0.5) 60 – 90 mins Use #1800 mesh to filter before using

Note:
– Using socks mesh ( with sealer layers ) and #1800 mesh ( with topcoat) for filtering before using.

z

</tr>

NO COATING PROCEDURES PRODUCT CODE APPLICATION METHOD INSTRUCTION MIXING RATIO(%) DRYING TIME AT 27 – 37° C, AIR HUMIDITY < 70% NOTE
1 Wipe Pigment  Based on  sample Spray + Wipe Using original 100% 10 mins
2 Premium PA Clear Sealer BA2202-SL Spray PA Sealer + PA Premium Hardener (BA.148.40-H) + PA Reducer (BA.80.58-CS) (2:1:1) 60 – 90 mins Sanding  #400
3 Pigment Based on sample Spray Using original 100% 10 mins
4 PA Clear Satin – Matte 50 – 90 BA2402 – (5-50%) Spray PA Clear Satin + PA Premium Hardener (BA.148.40-H) + PA Reducer (BA.80.58-CS) (2:1:0.5) 60 – 90 mins Use #1800 mesh to filter before using

Note:
– Using socks mesh ( with sealer layers ) and #1800 mesh ( with topcoat) for filtering before using.

NO COATING PROCEDURES PRODUCT CODE APPLICATION METHOD INSTRUCTION MIXING RATIO(%) DRYING TIME AT 27 – 37° C, AIR HUMIDITY < 70% NOTE
1 PA White Sealer BA3294-WS Spray PA White Sealer + PA Premium Hardener (BA.148.40-H) + PA Reducer (BA.80.58-CS) 2 : 1 : 1 60 – 90 mins Sanding #400
2 PA White Sealer BA3294-WS Spray PA White Sealer + PA Premium Hardener (BA.148.40-H) + PA Reducer (BA.80.58-CS) 2 : 1 : 1 60 – 90 mins Sanding #400
3 PA White Sealer BA3294-WS Spray PA White Sealer + PA Premium Hardener (BA.148.40-H) + PA Reducer (BA.80.58-CS) 2 : 1 : 1 60 – 90 mins Sanding #400
4 PA Clear Satin -Gloss 50 – 90 BA2402 (5-50%) Spray PA Clear Satin + PA Premium Hardener (BA.148.40-H) + PA Reducer (BA.80.58-CS) 2 : 1 : 0.5 60 – 90 mins Use #1800 mesh to filter before using

Note:
– Using socks mesh ( with sealer layers ) and #1800 mesh ( with topcoat) for filtering before using.

NO COATING PROCEDURES PRODUCT CODE APPLICATION METHOD INSTRUCTION MIXING RATIO(%) DRYING TIME AT 27 – 37° C, AIR HUMIDITY < 70% NOTE
1 PA White Sealer BA3294-WS Spray PA White Sealer + PA Premium Hardener (BA.148.40-H) + PA Reducer (BA.80.58-CS) 2 : 1 : 1 60 – 90 mins Sanding #400
2 PA White Sealer BA3294-WS Spray PA White Sealer + PA Premium Hardener (BA.148.40-H) + PA Reducer (BA.80.58-CS) 2 : 1 : 1 60 – 90 mins Sanding #400
3 PA Clear Satin – Gloss 50 – 90 BA2402 (5-50%) Spray PA Clear Satin + PA Premium Hardener (BA.148.40-H) + PA Reducer (BA.80.58-CS) 2 : 1 : 0.5 60 – 90 mins Use #1800 mesh to filter before using

Note:
– Using socks mesh ( with sealer layers ) and #1800 mesh ( with topcoat) for filtering before using.

biomass-advantages
